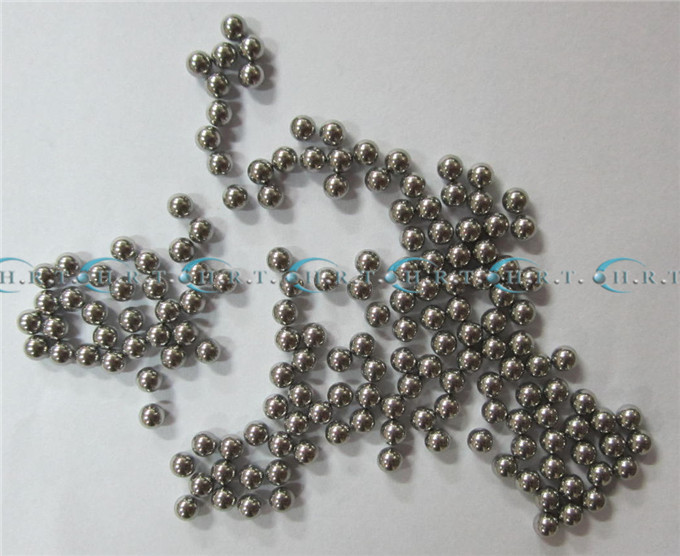

• 2.5mm SUS304 Stainless Steel Ball

    2016-10-31


    1) Materials: stainless steel (SUS304, SS304)
    2) Diameters: 2.5mm

    3) Grades: G100

    4) Hardness (HRC): ≤ HRC26

    5) Certificate: ISO-9001, ISO-14001, TS-16949, GB308-2002, RoHS, SGS, ...

    6) Features: Good corrosion resistance
    7) Applications: 2.5mm SUS304 Stainless Steel Balls have good wearing, high corrosion resistance, excellent surface quality. They are mainly used in couplings, valves and pumps, aerosol and dispenser valves, medical applications, animal feeders, trigger sprayers, finger pumps and food processing
    and so on.

    Chemical Composition% (SUS304)

    CHROMIUM CARBON NICKEL MANGANESE SILICON PHOSPHOROUS SULPHUR
    18%-20% .08% MAX. 8%-10.5% 2% MAX. 1% MAX. .045% MAX. .03% MAX.

    Grade Variation of Ball Diameter
    VDWS    		 Deviation from Spherical Form
    ΔSph    		 Variation of Ball Lot Diameter
    VDWL    		 Surface roughness
    Ra
    5 0.13 0.13 0.25 0.014
    10 0.25 0.25 0.5 0.02
    16 0.4 0.4 0.8 0.025
    20 0.5 0.5 1 0.032
    24 0.6 0.6 1.2 0.04
    28 0.7 0.7 1.4 0.05
    40 1 1 2 0.06
    60 1.5 1.5 3 0.08
    100 2.5 2.5 5 0.1
    200 5 5 10 0.15
    500 12.5 12.5 25
    1000 25 25 50
